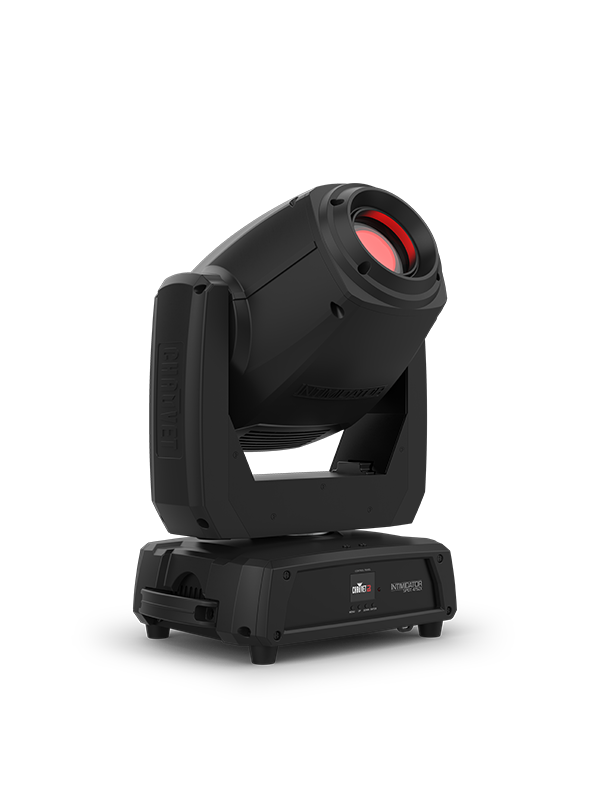

Chauvet DJ Intimidator Spot 475ZX

CALL FOR PRICE

This punchy 250W LED powerhouse comes packed with features that make it ideal for installations and precise stage performances. Motorized zoom and focus ensure the looks you create with its dual gobo wheels and dual rotating prisms are always crisp and provide the coverage you need for both short and long throws. With both 3- and 5-pin DMX connectors, Intimidator Spot 475ZX is an easy, powerful addition to any rig.



Categories: , , Tags: , , , , , , , ,

Description

Highlights

  • True hybrid moving head fitted with an intense 251 W discharge light engine
  • All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
  • Dual, overlapping prisms with independent control multiply the beam dynamics
  • Dual gobo wheels allow for gobo morphing and amazing mid-air projections
  • Motorized zoom works in beam, spot and wash modes for ultimate light control
  • Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
  • Emit crisp projections at almost any distance using the motorized focus
  • Glass optics ensure crisp beams and gobos at all times
  • Full-color display with RF compatibility, totem mode and onboard memory for storing a scene
  • powerCON®-compatible power input/output connections for power linking

Specifications

  • DMX Channels:13 or 19
  • DMX Connectors:3- and 5-pin XLR
  • Pan and Tilt:540°/270°
  • Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 270° tilt.
  • Colors:12 + open, split colors, continuous scroll at variable speeds
  • Gobos:(1) : 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
    (2) : 17 + open, continuous scroll at variable speeds
  • Light Source:Osram SIRIUS HRI® 251W discharge lamp (3,000 hrs)
  • Strobe Rate:0 to 20 Hz
  • Power Linking:3 units @ 120 V; 5 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Gobo Size:13.7 mm outside, 10 mm image, 0.8 mm max thickness
  • Weight:35.6 lb (16.1 kg)
  • Size:12.6 x 8.6 x 21.6 in (322 x 220 x 549 mm)
  • Approvals:CE, MET, ROHS
  • Prism (1): 5-facet round, bidirectional rotation at variable speeds
  • Prism (2): 6-facet linear, bidirectional rotation at variable speeds
  • Zoom Angle (beam): 1° to 3°
  • Zoom Angle (spot): 12° to 23°
  • Zoom Angle (wash): 7° to 19°
  • Illuminance (1° beam): 500,411 lux @ 5 m
  • Illuminance (12° spot): 376,927 lux @ 5 m
  • Illuminance (7° wash): 8,038 lux @ 5 m
  • Power and Current: 358 W, 3.6 A @ 120 V, 60 Hz
  • Power and Current: 344 W, 2.3 A @ 230 V, 50 Hz
  • Optional Controllers: RFC-XL

What’s Included

  • Intimidator Hybrid 251SR
  • Power cord
  • Hanging bracket
  • Quick Reference Guide
