GigBAR 3 ILS

CALL FOR PRICE

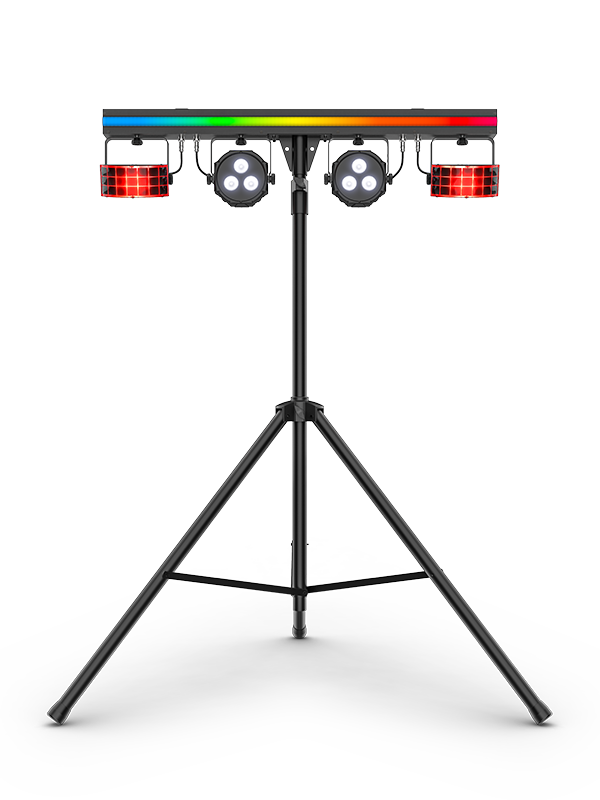

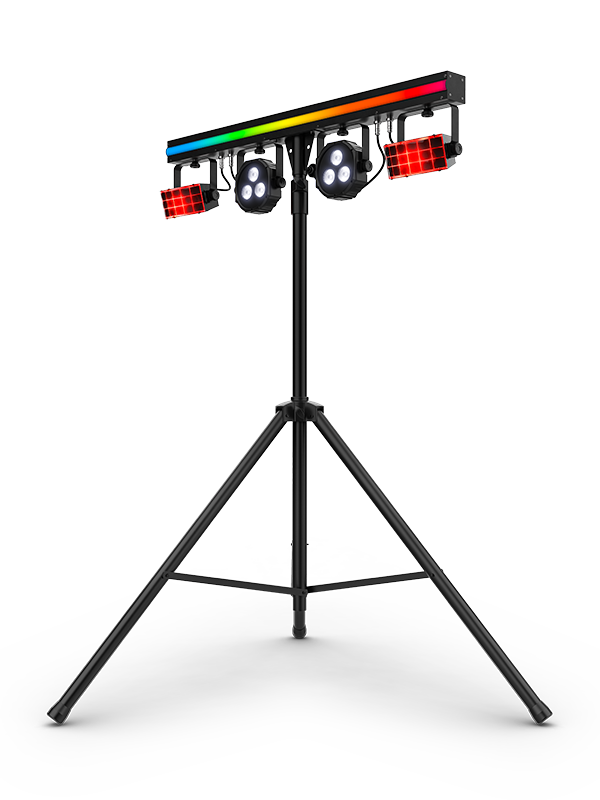

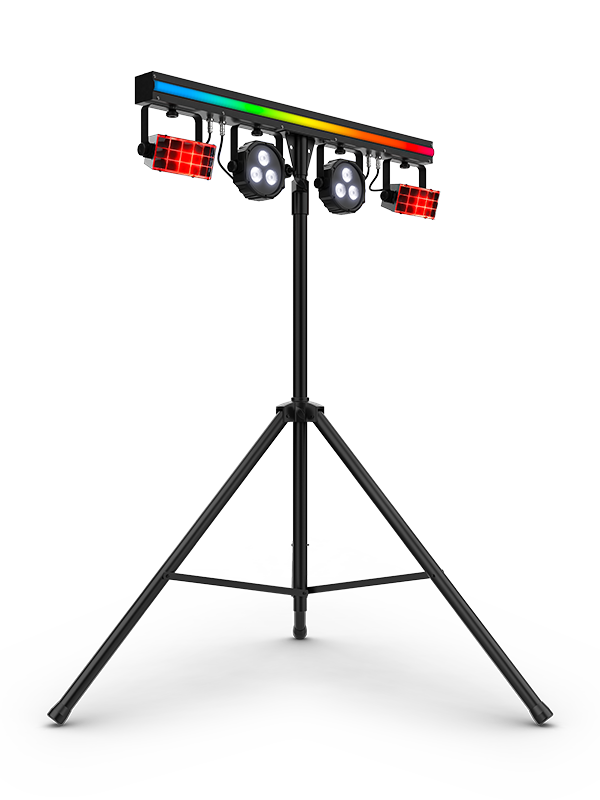

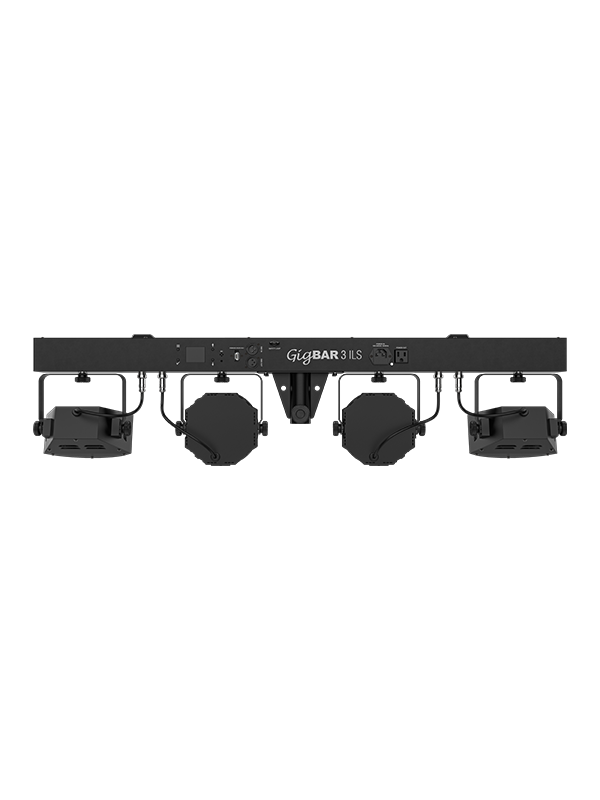

GigBar 3 ILS brings on the good times fast with Instant Light Show technology that wirelessly syncs multiple fixtures of different types. Get in and out quickly, and spend less time on setup, with an ILS-compatible 3-in-1 pack-n-go kit that comes with tripod, wireless footswitch and carry bags. GigBar 3 ILS includes an LED strip for eye-candy effects, LED pars for color wash coverage, and LED derbies that send multicolored chasing beams across the dancefloor. Add up to 4 additional fixtures to create your own custom mobile lighting setup.

Categories: , ,

Description

Highlights

  • 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
  • Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
  • ILS compatibility for use in the ILS ecosystem
  • Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly
  • Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
  • Reversible tripod bracket allows for upside down mounting
  • Easy navigation and access all functions directly from the full-color LCD display
  • Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
  • Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
  • Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
  • Save time running cables and extension cords by power linking multiple units

Specifications

  • DMX Channels:2, 21, or 132
  • DMX Connectors:3-pin XLR
  • Strobe Rate:0 to 20 Hz
  • Operating Frequency:2.412 to 2.484 GHz
  • Power Linking:11 units 120 V; 18 units 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    47 W, .7A 120 V, 60 Hz
    45 W, .4 A 230 V, 50 Hz
  • Weight:13.2 lbs. (6 kg)
  • Size:41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
  • Approvals:CE, ROHS, FCC
  • Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
  • Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
  • Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
  • Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
  • Tripod leg width: 3.9 ft (1.2 m)
  • Fits Tripod Size: 1.5 in (37.4 mm)
  • Beam Angle (pars): 13°
  • Field Angle (pars): 24°
  • Coverage Angle (Derby): 114°
  • Coverage angle ( LED Strip ) : 174°
  • Cable Length: 9 ft (2.844 m)
  • Foot Switch Operating Frequency: 433 MHz
  • Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
  • Footswitch battery: 9 V 300mA
  • Optional Controllers: ILS Command, RF Remote

What’s Included

  • Gig Bar 3 ILS
  • Power cord
  • Stealth filter
  • Wireless footswitch
  • RF remote
  • Tripod
  • Carrying bag
  • Tripod bag
  • User Manual
